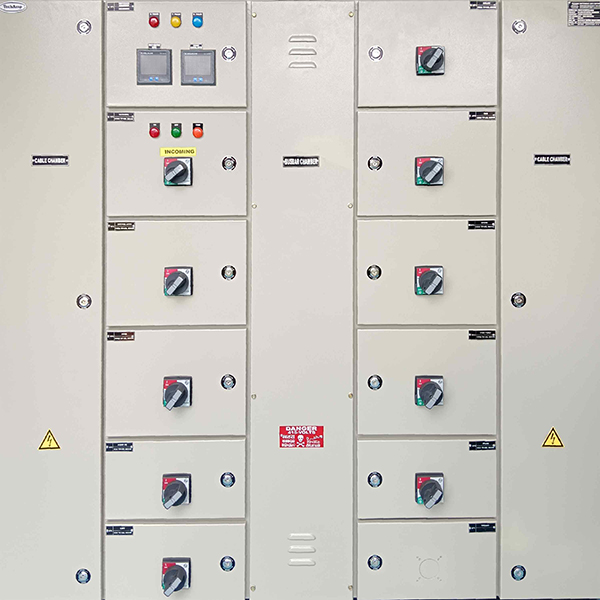

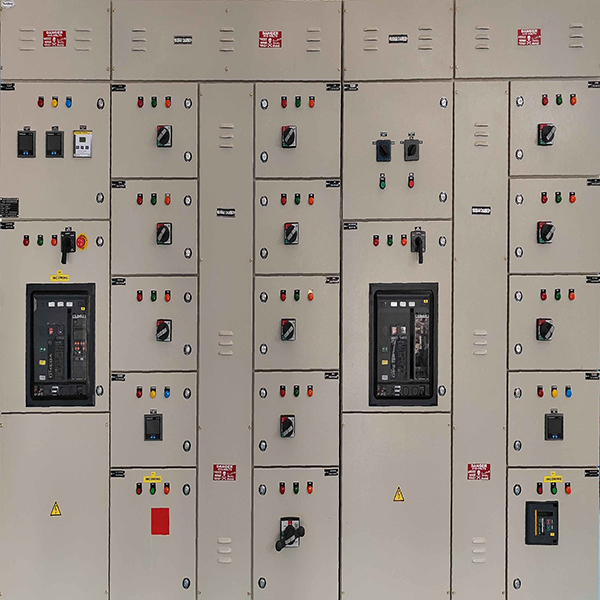

Power Control Centre (PCC Panel)

Overview

The power Control Centre is used for the distribution and control of various power sources used in industry. Normally Power Control Centers is installed near power source hence fault level is high.

Busbar systems in Power Control Centers are designed to suit the fault level as well as temperature rise to 40°c above ambient. Ample space is provided for cable termination. Various protections viz short circuit, overload, earth fault, under voltage, etc., are provided to protect source and equipment.

Specifications

APPLICATIONS	Operation, control & protection of distribution network with or without PLC/BMS connectivity
SYSTEM	3 Phase, 3 or 4 wire 50 HZ
RATED CURRENT	Upto 6300 Amps
OPERATIONAL VOLTAGE	110/230V 415V AC
RATED INSULATION	1000 V
RATED SERVICE VOLTAGE	690 V
AMBIENT TEMPERATURE	45 Deg C
SHORT TIME CURRENT	50 KA for 1 SEC,105 KA Peak
DEGREE OF PROTECTION	Ip 42, 54, 55, 65, as per custom requirement
FORM OF SEPARATION	Upto 3B/4B (optional Type 5)
TYPE TESTED FOR	Short time current withstand temperature rise degree of protection.
BUS BAR	ALUMINIUM OR COPPER
REF.STANDARD	IEC 61439-1:2020 & IEC 61439-2:2020
FEEDER CONFIGURATION	FIXED, EXTENDABLE TYPE

Motor Control Centre (MCC PANEL)

Overview

A motor control center (MCC) is an assembly of one or more enclosed sections having a common power bus and principally containing motor control units. Motor control centers are in modern practice a factory assembly of several motor starters.
A motor control center can include variable frequency drives, programmable controllers, and metering and may also be the electrical service entrance for the building.

Motor control centers have been used by the automobile manufacturing industry which used large numbers of electric motors. Today they are used in many industrial and commercial applications. Where very dusty or corrosive process are used, the motor control center may be installed in a separate air-conditioned room, but often an MCC will be on the factory floor adjacent to the machinery
controlled.

Specifications

APPLICATIONS	Operation, control & protection of distribution network with or without PLC/BMS connectivity
SYSTEM	3 Phase, 3 or 4 wire 50 HZ
RATED CURRENT	Upto 6300 Amps
OPERATIONAL VOLTAGE	110/230V 415V AC
RATED INSULATION	1000 V
RATED SERVICE VOLTAGE	690 V
AMBIENT TEMPERATURE	45 Deg C
SHORT TIME CURRENT	50 KA for 1 SEC,105 KA Peak
DEGREE OF PROTECTION	Ip 42, 54, 55, 65, as per custom requirement
FORM OF SEPARATION	Upto 3B/4B (optional Type 5)
TYPE TESTED FOR	Short time current withstand temperature rise degree of protection.
BUS BAR	ALUMINIUM OR COPPER
REF.STANDARD	IEC 61439-1:2020 & IEC 61439-2:2020
FEEDER CONFIGURATION	FIXED, EXTENDABLE TYPE

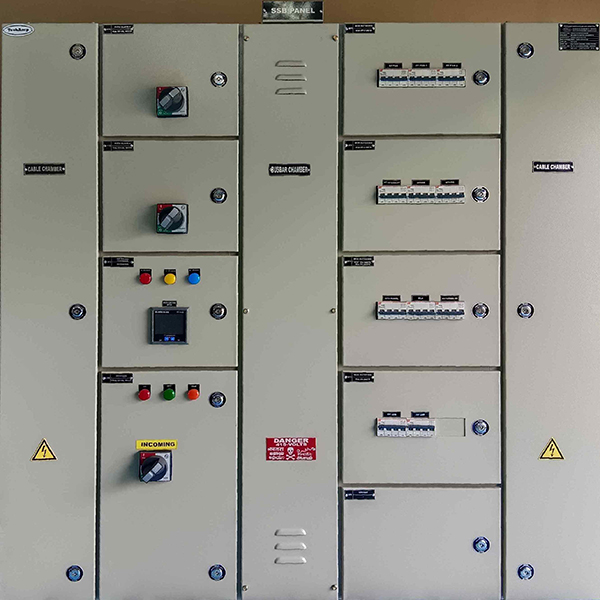

Sub Distribution Panel (SDB)

Overview

The sub-distribution panel or board consists of a basic frame with all the necessary electrical components such as main isolating switches, emergency shut-down mechanisms, RCDs, line circuit breakers, controls, and contactors for individual workgroups.

The distributor can supply multiple workgroups with electrical power independently. We design and manufacture the Sub distribution Panel according to the Customer’s needs through reliability, selectivity, durability, and time of taking action to Product Quality that complies with cost-effective, long life, and application-wise.

Specifications

APPLICATIONS	Operation, control & protection of distribution network
SYSTEM	3 Phase, 3 or 4 wire 50 HZ
RATED CURRENT	Upto 3200 Amps
OPERATIONAL VOLTAGE	110/230V 415V AC
RATED INSULATION	1000 V
RATED SERVICE VOLTAGE	690 V
AMBIENT TEMPERATURE	45 Deg C
SHORT TIME CURRENT	50 KA for 1 SEC,105 KA Peak
DEGREE OF PROTECTION	Ip 42, 54, 55, 65, as per custom requirement
FORM OF SEPARATION	Upto 3B/4B (optional Type 5)
TYPE TESTED FOR	Short time current withstand temperature rise degree of protection.
BUS BAR	ALUMINIUM OR COPPER
REF.STANDARD	IEC 61439-1:2020 & IEC 61439-2:2020
FEEDER CONFIGURATION	FIXED, EXTENDABLE TYPE

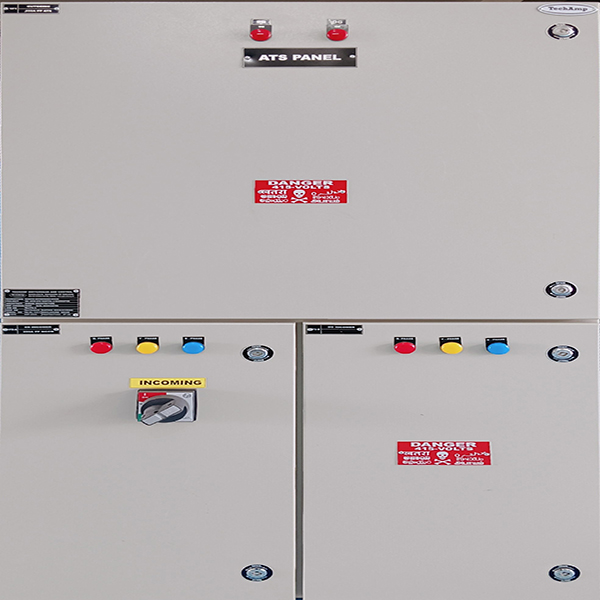

Auto Main Failure Panel (AMF PANEL)

Overview

Auto Main Failure Panels, also known as AMF panels, are used to automatically changeover from a mains electricity supply to a stand-by generator or gen set on failure of the mains supply. When the mains supply is restored, the system automatically changes back and stops the gen set. The stand-by generator will be eventually shut down after a short cooling down period.

We manufacture and supply AMF (Auto Mains Failure) Panels as per the specific requirements of the clients. These panels are used for controlling power supply in various industries like processing plants, hospitals, etc. At the request of the clients, we
customized these panels (both automatic and manual modes) to meet client specific requirements.

Specifications

APPLICATIONS	Operation, control & protection of distribution network
SYSTEM	3 Phase, 3 or 4 wire 50 HZ
RATED CURRENT	Upto 6300 Amps
OPERATIONAL VOLTAGE	110/230V 415V AC
RATED INSULATION	1000 V
RATED SERVICE VOLTAGE	690 V
AMBIENT TEMPERATURE	45 Deg C
SHORT TIME CURRENT	50 KA for 1 SEC,105 KA Peak
DEGREE OF PROTECTION	Ip 42, 54, 55, 65, as per custom requirement
FORM OF SEPARATION	Upto 3B/4B (optional Type 5)
TYPE TESTED FOR	Short time current withstand temperature rise degree of protection.
BUS BAR	ALUMINIUM OR COPPER
REF.STANDARD	IEC 61439-1:2020 & IEC 61439-2:2020
FEEDER CONFIGURATION	FIXED, EXTENDABLE TYPE

Main Distribution Board (MDB Panel)

Overview

An MDB is a panel or enclosure that houses the fuses, circuit breakers, and ground leakage protection units where the electrical energy, which is used to distribute electrical power to numerous individual circuits or consumer points, is taken in from the transformer or an upstream panel.

An MDB typically has a single or multiple incoming power source and includes main circuit breakers and residual current or earth leakage protection devices.

Specifications

APPLICATIONS	Operation, control & protection of distribution network
SYSTEM	3 Phase, 3 or 4 wire 50 HZ
RATED CURRENT	Upto 4000 Amps
OPERATIONAL VOLTAGE	110/230V 415V AC
RATED INSULATION	1000 V
RATED SERVICE VOLTAGE	690 V
AMBIENT TEMPERATURE	45 Deg C
SHORT TIME CURRENT	50 KA for 1 SEC,105 KA Peak
DEGREE OF PROTECTION	Ip 42, 54, 55, 65, as per custom requirement
FORM OF SEPARATION	Upto 3B/4B (optional Type 5)
TYPE TESTED FOR	Short time current withstand temperature rise degree of protection.
BUS BAR	ALUMINIUM OR COPPER
REF.STANDARD	IEC 61439-1:2020 & IEC 61439-2:2020
FEEDER CONFIGURATION	FIXED, EXTENDABLE TYPE

Lighting Distribution Board (LDB PANEL)

Overview

Lighting Distribution Boards are an integral and essential part of every building project and they must be designed, manufactured, and installed all in accordance with the safety standards.

In most cases, it operates a layman whereas others operate dedicated or trained personnel. This new generation of panelboard products represents the high level of engineering innovation expected from SCPPL.

Specifications

APPLICATIONS	Operation, control & protection of distribution network
SYSTEM	3 Phase, 3 or 4 wire 50 HZ
RATED CURRENT	Upto 2000 Amps
OPERATIONAL VOLTAGE	110/230V 415V AC
RATED INSULATION	1000 V
RATED SERVICE VOLTAGE	690 V
AMBIENT TEMPERATURE	45 Deg C
SHORT TIME CURRENT	50 KA for 1 SEC,105 KA Peak
DEGREE OF PROTECTION	Ip 42, 54, 55, 65, as per custom requirement
FORM OF SEPARATION	Upto 3B/4B (optional Type 5)
TYPE TESTED FOR	Short time current withstand temperature rise degree of protection.
BUS BAR	ALUMINIUM OR COPPER
REF.STANDARD	IEC 61439-1:2020 & IEC 61439-2:2020
FEEDER CONFIGURATION	FIXED, EXTENDABLE TYPE

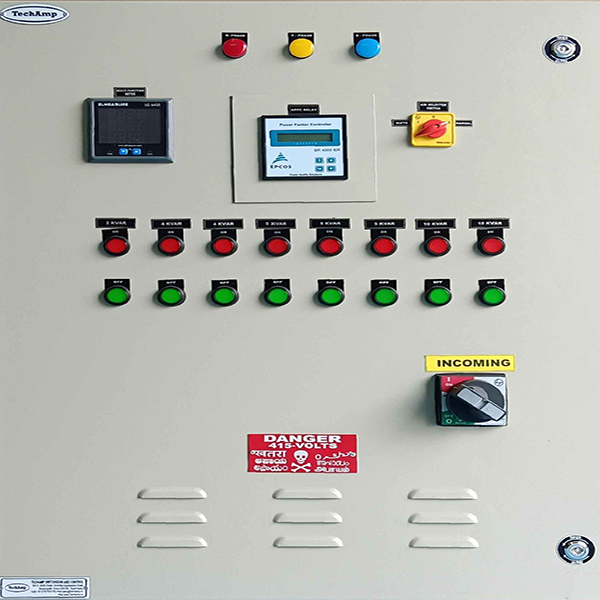

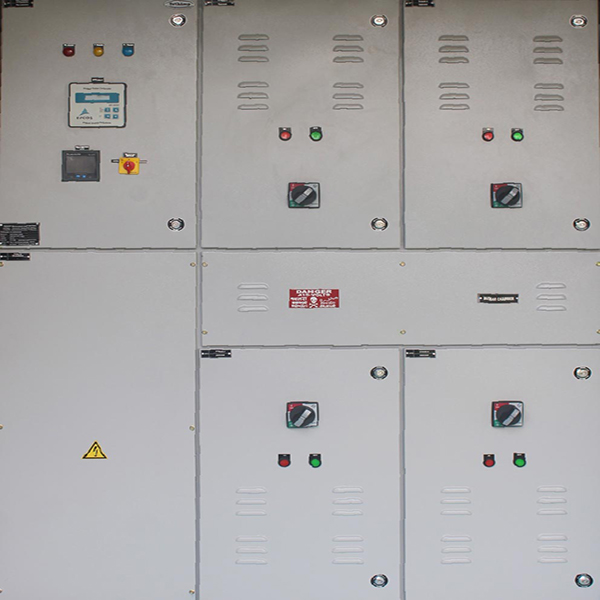

Automatic Power Factor Control
(APFC Panel)

Overview

APFC or Automatic Power Factor Control Panels are mainly used for the improvement of Power Factor. Power Factor can be explained as the ratio of active power to apparent power and it is a key factor in measuring electrical consumption.

Everyone knows how costly electricity has become in the present time. Therefore it becomes of utmost important to cut down on electrical consumption to reduce expenditure.

APFC Panels come real handy in the achievement of this purpose Use of these control panels becomes indispensable in those industries where electrical installations are meant to supply to large electrical load.

Specifications

APPLICATIONS	Automatic power factor correction equipment turned capacitor banks, dynamic PFC
SYSTEM	415 V 3Phase, 3 or 4 wire 50 HZ
RATED CURRENT	Upto 1200 Amps
OPERATIONAL VOLTAGE	230/525V AC
RATED INSULATION	1000 V
RATED SERVICE VOLTAGE	690 V
AMBIENT TEMPERATURE	45 Deg C
SHORT TIME CURRENT	50 KA for 1 SEC,105 KA Peak
DEGREE OF PROTECTION	Ip 42, 54, 55, 65, as per custom requirement
FORM OF SEPARATION	Upto 2B/3B
TYPE TESTED FOR	Short time current withstand temperature rise degree of protection.
BUS BAR	ALUMINIUM OR COPPER
COOLING	NATURAL / FORCED
FEEDER CONFIGURATION	FIXED, EXTENDABLE TYPE
De-TUNING	CONVENTIONAL or 5.67%-7% or 14%
SWITCHING	CONTACTOR / THYSISTOR
PF CONTROL	BOTH MANUAL AND AUTOMATION THROUGH APFC RELAY UPTO 20 STAGE

DG Synchronizing Panel

Overview

We are actively engaged in the manufacturing and export of high-performance DG Synchronization Panel which comes complete with Controlling & Protection Relays capable of synchronizing more than one DG set / with Mains & DG and with necessary protections.

The offered product is precisely designed and manufactured by utilizing optimum quality raw materials and sophisticated technology. Furthermore, we offer this DG synchronization panel in various technical specifications at affordable prices.

Specifications

APPLICATIONS	CONTROL, SYNCHRONIZING, LOAD SHARING / LOAD MANAGEMENT OF DG SETS THROUGH CONTROL RELAY WITH or WITHOUT PLC BASED CUM MANUAL
SYSTEM	3 Phase, 3 or 4 wire 50 HZ
RATED CURRENT	Upto 6300 Amps
OPERATIONAL VOLTAGE	110/230V 415V AC
RATED INSULATION	1000 V
RATED SERVICE VOLTAGE	690 V
AMBIENT TEMPERATURE	45 Deg C
SHORT TIME CURRENT	50 KA for 1 SEC,105 KA Peak
DEGREE OF PROTECTION	Ip 42, 54, 55, 65, as per custom requirement
FORM OF SEPARATION	Upto 3B/4B (optional Type 5)
TYPE TESTED FOR	Short time current withstand temperature rise degree of protection.
BUS BAR	ALUMINIUM OR COPPER
REF.STANDARD	IEC 61439-1:2020 & IEC 61439-2:2020
FEEDER CONFIGURATION	FIXED, EXTENDABLE TYPE

Variable Frequency Drive (VFD Panel)

Overview

A Variable Frequency Drive (VFD) is a type of motor controller that drives an electric motor by varying the frequency and voltage supplied to the electric motor. Other names for a VFD are variable speed drive, adjustable speed drive, adjustable frequency drive, AC drive, microdrive, and inverter.

Sometimes your workspace is dusty, dirty, wet, humid, corrosive, or hot. In those harsh environments, you cannot just mount your VFD exposed. You need a VFD Control panel – an enclosure that protects the VFD and other electric components.

Specifications

APPLICATIONS	Readymade as per customer specifications for various types of industries, Indoor or outdoor metering, control, protection, relay and automation for LV panel PLC and RELAY Based
SYSTEM	3 Phase, 3 or 4 wire 50 HZ
RATED CURRENT	Upto 4000 Amps
OPERATIONAL VOLTAGE	24/110/230/415V AC
RATED INSULATION	1000 V
RATED SERVICE VOLTAGE	690 V
AMBIENT TEMPERATURE	45 Deg C
SHORT TIME CURRENT	50 KA for 1 SEC,105 KA Peak
DEGREE OF PROTECTION	Ip 42, 54, 55, 65, as per custom requirement
FORM OF SEPARATION	Upto 3B/4B
TYPE TESTED FOR	Short time current withstand temperature rise degree of protection.
BUS BAR	ALUMINIUM OR COPPER
REF.STANDARD	IEC 61439-1:2020 & IEC 61439-2:2020
FEEDER CONFIGURATION	FIXED, EXTENDABLE TYPE

Bus Duct & Rising Mains Panel

Overview

We offer highly efficient HT/LT Bus Ducts and rising mains. This is offered with both indoor and outdoor construction with IP42/55 degrees of protection.

This type of bus duct is offered in aluminium and copper based and manufactured as per the International Standards. SCPPL designs bus duct systems in a way that it allows you to have multiple outputs from it without any power loss. Our manufactured Bus Bar Chambers needs very less maintenance.

Specifications

APPLICATIONS	OPERATION, CONTROL & PROTECTION OF DISTRIBUTION NETWORK WITH OR WITHOUT PLC /BMS CONNECTIVITY
SYSTEM	3 Phase, 3 or 4 wire 50 HZ
RATED CURRENT	Upto 6300 Amps
OPERATIONAL VOLTAGE	415V AC
RATED INSULATION	1000 V
RATED SERVICE VOLTAGE	690 V
AMBIENT TEMPERATURE	45 Deg C
SHORT TIME CURRENT	50 KA for 1 SEC,105 KA Peak
DEGREE OF PROTECTION	Ip 42, 54, 55, 65, as per custom requirement
FORM OF SEPARATION	Upto 3B/4B (OPTIONAL TYPE 5)
TYPE TESTED FOR	Short time current withstand temperature rise degree of protection.
TYPE	TOTALLY ENCLOSED, AIR INSULATED, NON SEGREGATED
REF.STANDARD	IEC 61439-1:2020 & IEC 61439-2:2020
NEUTRAL	FIXED, EXTENDABLE TYPE
ENCLOSURE	EPOXY POWDER COATED CRCA SHEET
EARTHING	SEPARATE EARTH BUS PROVIDED ON ENCLOSURE
BUS BAR INSULATION	BLACK PVC INSULATION WITH COLOUR CODING FOR PHASE IDENTIFICATION BLACK MATT PAINT FOR BUSBAR RATING 2500 A AND ABOVE
